EPS Pre-expander Series-
Continuous Pre-expander

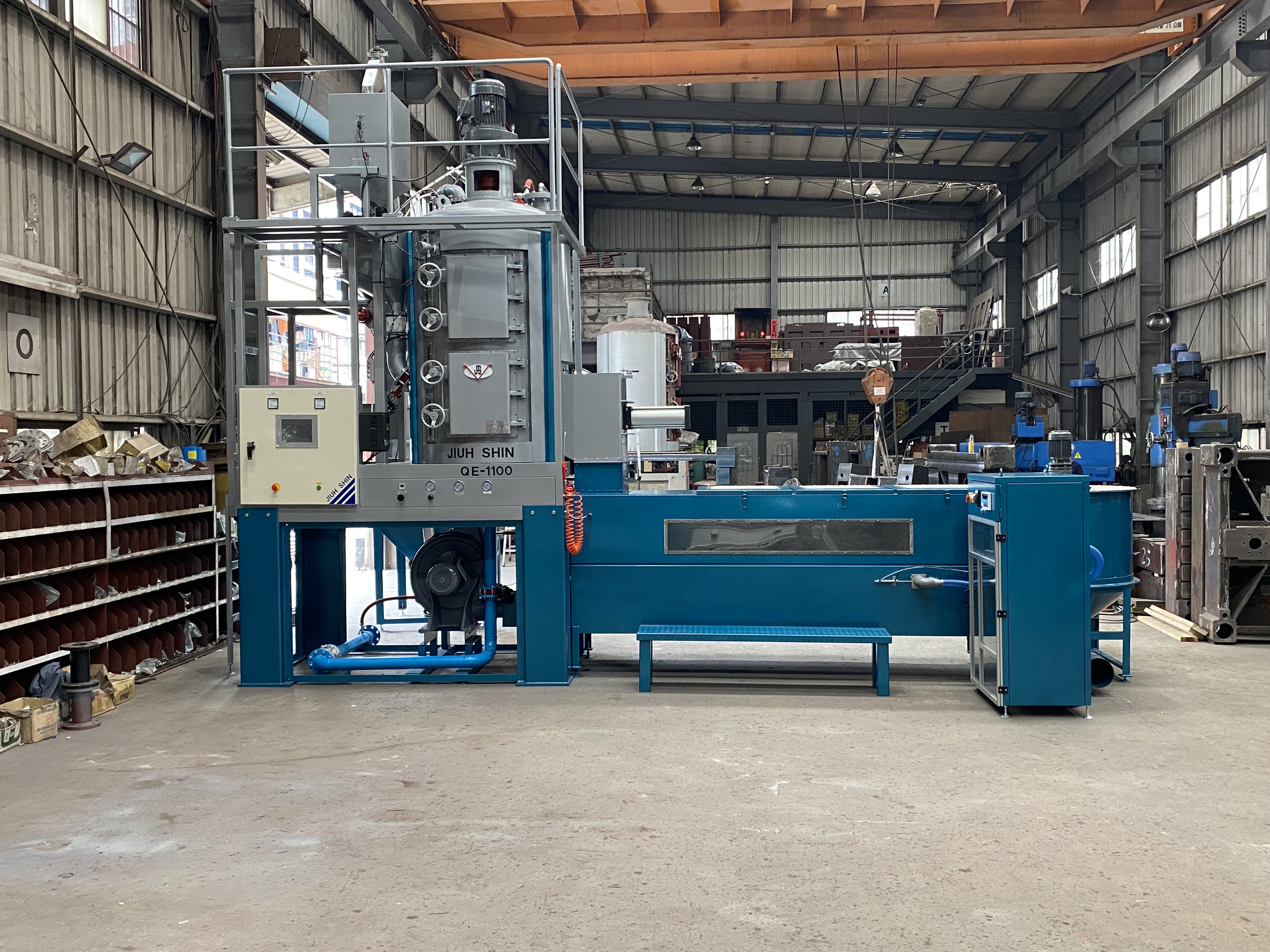

Quantitative Pre-Expander (Batch type)



Features :
1.Batch-type fixed quantity foaming, easy operation and stable foaming rate. The average foaming tolerance is ±1.5%.
2. High production capacity. Per hour can produce 852 kg (18g/cm2), per day can produce 20 tons.
3. Adopt stainless steel (#304) (excluding machine base).
4. Fully automatic and multiple safety interlock facilities, don’t need the operators to remain behind to take care of things.
5. 52% parts made in Japan, good quality and long life span.
6.Fast expansion speed, expansion efficiency is higher than European brands by 20%.
7. Many patent licenses and the EU CE machine safety certificate.





  Specification :


TYPE

QE-970
for frst stage
pre-expansn

QE-1100
for first stage
pre-expanslon

QE-1600T
for second stage
pre-expansaon

TANK SIZE (MM)

970φ x 1500

1100φ x 1700

1600φ x 2000

EXPANSION
CAPACITY

DENSITY (g/liters)

20g

16g

13g

20g

16g

13g

13g → 8g

10g → 6g

 CAPACITY (KG/HR)

600

560

450

930

760

610

450

380

TOLERANCE

±1.5%

±1.5%

±1.0%

MIXING MAlN MOTOR (KW x P)

2.2 x 6P

3.7 x 6P

5.6 x 6P

ELECTRONIC COMPUTER AUTO
SCALE (KG)

1~30

1~50

1~50

 DRYER  L x W x H (MM)

2800 x 700 x 1400

3000 x 850 x 1400

3000 x 1200 x 1350

CONSUMPTION

 ELECTRICTY (KW)

11

14

32

STEAM (KG/CM2/H)

280

320

400

AIR (KG/CM2/H)

90

100

120



  Remarks : To ensure technological excellence, specifications are subject to change without prior notice.
