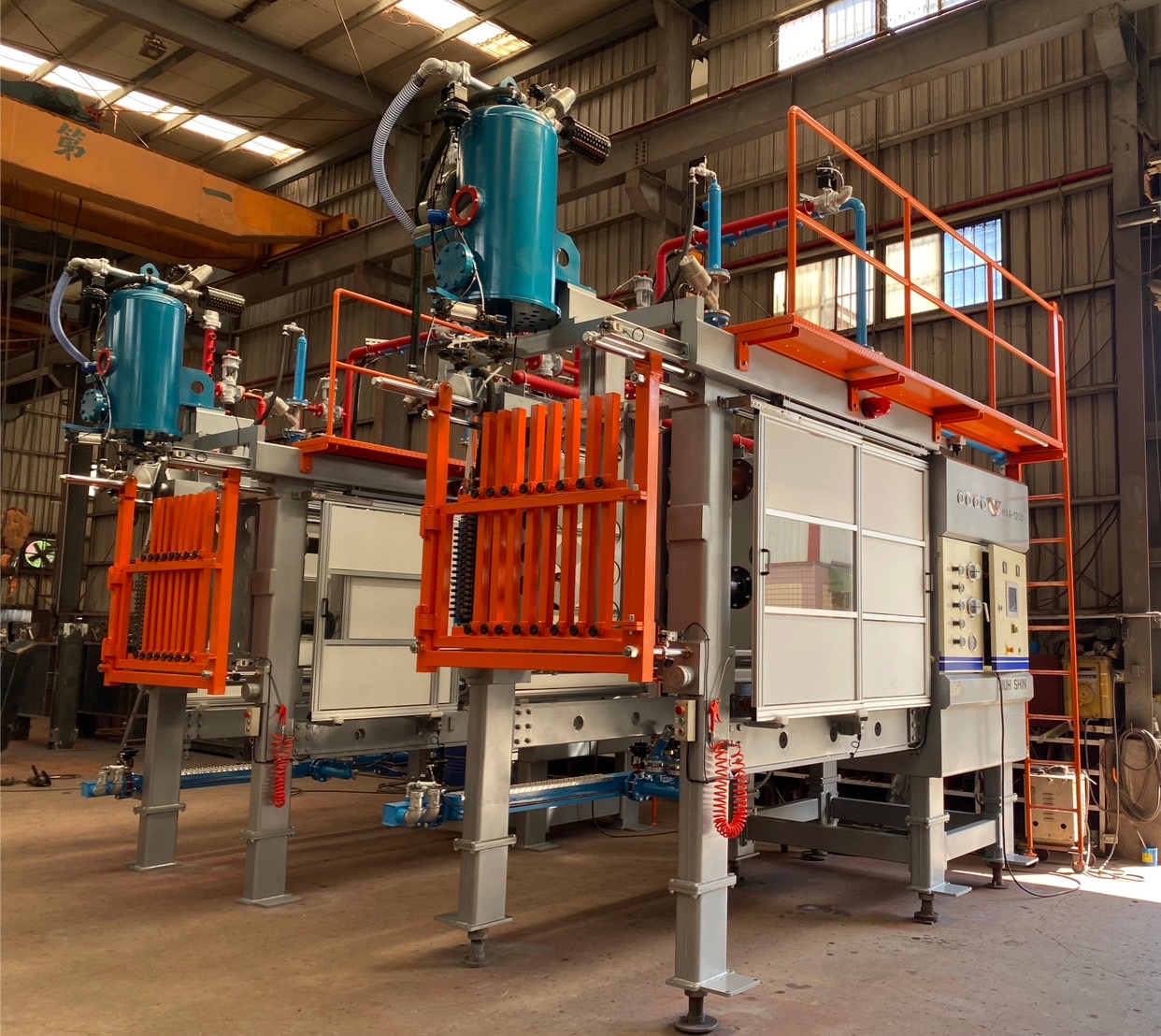

EPS.EPE.EPO Automatic Vacuum Molding Machine-
With steam chamber
Without steam chamber



Features :
1. Normal type can produce EPS、EPE、EPO.
2. Newly developed steam energy-saving systems can reduce the usage amount of steam .
3. Precision material feeding device for faster injection without any dead angle. The density of material on the muzzle of feeder will not increase.
4. 30 years grade structure with two layers of anti-rust inorganic zinc powder paint to prevent becoming deformed and rusting.
5. Precision processing technique, the tolerance between fixed plate and movable plate is within ±0.15 mm.
6. Digital hydraulic clamp-prevention device. If end products haven’t taken off, it will give alarm immediately to protect personnel and mold safety.
7. Over 52% of parts made in Japan. Increase the life span and the production quality.
8. Many patent licenses and the EU CE machine safety certificate.





  Specification :


ITEM

HVA-900

HVA-1100

HVA-1400

HVA-1652

HVA-2100

Mold clamping force (Ton)

11

18

25

35

43

Mold plate dimension ((H XV) mm

1000 x 800

1140 x 1100

1590 x 1200

1940 x 1400

2340 x 1520

Max product size (H XV) mm

800 x 600

800 x 1000

1280 x 1080

1552 x 1300

1980 x 1400

Max. product height (mm)

300

320

320

320

320

 Standard mold size (H xv) mm

900 x 520

900 x 1100

1380 x 1180

1652 x 1400

2100 x 1520



  Remarks : To ensure technological excellence, specifications are subject to change without prior notice.
