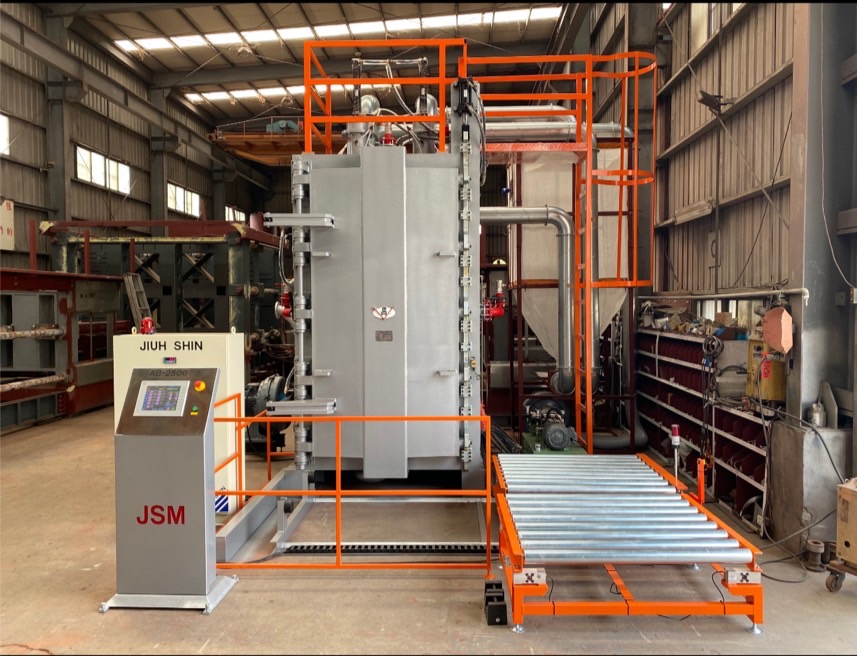

Automatic Block Vacuum
Forming Machine System (Vertical Type)
Features :
1. Adopt stainless steel (#304) polish mold plate with laser cutting steam
holes.
2. The working process is fully automatic, don’t need the operators to
assist.
3. Self-developed expansion induction, control good fusion (ripeness) and
good cooling of end products accurately. Its value will be recorded in the
man-machine interface.
4. Flush-type temperature decreasing for individual vacuum system, shorten
cooling time.
5. Wisdom value system, control any abnormal condition of machine completely
and can assist in troubleshooting.
6. C series type: adjustable mold plate, can adjust the size for one side of
EPS block product.
Specification :
TYPE
AB20～AB25
AB30～AB40
AB50～AB60
PRODUCT SIZE (mm)
2000 x 1000 x 1000
3000 x 1000 x 500
5000 x 1000 x 500
STEAM INLET (INCH)
4"B
4"B
5"B
MOTOR OF VACUUM (KW)
11.25
15
22.5
VACUUM TANK CAPACITY (LITER)
2000
3000
4000
CONSUMPTiON
ELECTRICITY (KW)
26
34
43
STEAM (KG/M3)
3.5
5
6
AIR (KG/M3)
1
1
2
WATER (M3/H)
5
6
8
Remarks : To
ensure technological excellence, specifications are subject to change without prior
notice.
